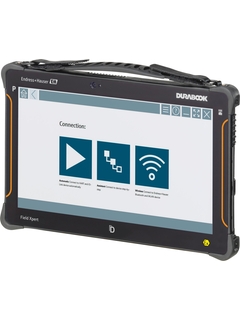

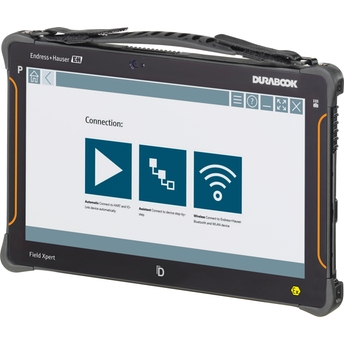

The Field Xpert SMT70B tablet PC for device configuration enables mobile plant asset management in hazardous (Ex zone 2) and non-hazardous areas. It is suitable for commissioning and maintenance staff to manage Endress+Hauser and third-party field instruments with a digital communication interface and documents the progress of the work. Field Xpert also uses the most secure Bluetooth connection for its wireless connectivity!
The Field Xpert SMT70B is designed as a complete solution, comes with a pre-installed driver library and is an easy-to-use, touch-enabled tool for managing devices throughout their entire life cycle. Tip: The Netilion Library application is a valuable addition to Field Xpert. Netilion Library stores and manages all documents created with Field Xpert in the Endress+Hauser Cloud. So that everything is secure, up-to-date and available everywhere.
Benefits
High-performance industrial tablet.
Efficient asset management and maintenance to save time.
Mobile commissioning for all field devices.
Enhance collaboration and productivity with the integrated Netilion ecosystem.
Fast connections, automatic device recognition, and real-time updates.

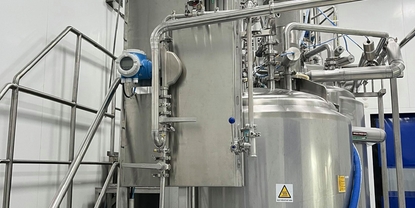

Aqualande, a leading player in the European aquaculture business, launched a continuous water quality monitoring. Endress+Hauser’s robust hardware and digital technology could convince the customer.
The Field Xpert SMT tablet PC for universal device configuration supports a variety of protocols, the Endress+Hauser service protocols, and connection to Endress+Hauser Bluetooth field devices and Endress+Hauser WLAN field devices. You can connect the field devices directly via a suitable interface, such as a modem (point-to-point), a bus system (point-to-bus) or a wireless connection (WLAN/Bluetooth).
Input
Camera: 8 MP camera on the back with auto focus and LED flash with 1500 mcd 2 MP camera on the front Scanner: 1D/2D barcode scanner
CPU
Intel Core i5-1235
Memory
16 GB DDR5
Hard disk drive
512 GByte SSD Slot for microSD memory card (microSDXC)
Power supply
Replaceable, rechargeable lithium polymer battery, 11.1 VDC, 3900 mAh (8 h)/6900 mAh (15 h) (optional)
Dimensions (WxHxD)
298 mm x 192 mm x 20 mm (11.7 in x 7.56 in x 0.79 in)
1 x Thunderbolt 4 2 x USB 3.2 Gen 2 (Typ A) Intel Wireless 6E AX211 (IEEE 802.11ax) Bluetooth 5.3 3G, 4G LTE WWAN
Operation
Operation system: Windows 10 LTSC
Configuration
Touch-enabled device configuration software optimized for Field Xpert. The software supports protocols such as HART, PROFIBUS DP/PA, PROFINET, FOUNDATION Fieldbus, Modbus, IO-Link, and Endress+Hauser service protocols (CDI, ISS, IPC and PCP) and includes several thousand pre-installed device and communication drivers.
Certificates
Degree of protection: IP64 Electromagnetic Compatibility: Interference conformance to EN 55022: 2010+ AC: 2011 EN 55022 class B EN 61000-3-3,2 Interference immunity to: EN 55024: 2010 IEC 61000-4-2,3,4,5,6,8,11 Hazardous area approval: ATEX (Europe) SGS (North America) IECEx (International) KC (Korea) CML (Japan) INMETRO (Brazil) MASC (South Africa) CCC (China) Radio approval: CE, FCC, WPC, KC, MIC, ANATEL, ICASA, CMIIT ID and more
